iCloud bug修复

大类
iOS
技术标签
逆向-Windows
Powershell
优先级
Medium
开始日期
Dec 23, 2020
状态
Finalized
Public
Public
最后更新
Dec 29, 2021

方案

  • 通过调试器将LogLevel提高，并输出到OutputDebugString中

Bug1：iCloud无法同步一些老的视频或图片

无法修复，服务器直接异常，导致iCloud一直重试

Bug2：iCloud不更新

直接删除图片库然后重新更新即可，预估为图片库版本过低iCloud升级后支持不好出现数据紊乱。


Bug3：iCloud不自动下载

iCloud图片实际上是个Cloud Storage Provider，相应的可以通过Windows.Storage.StorageFile获取文件信息，使用Powershell可以得到文件信息，而各种Property在这里有完整列表https://docs.microsoft.com/en-us/windows/win32/properties/core-bumper：
顺便学习了下PowerShell中调用Com接口的方法: https://github.com/yuhisern7/pruebas/blob/de2b6b477b749e2a82a75935cef00273d11f8cee/Change-Lockscreen.ps1
Add-Type -AssemblyName System.Runtime.WindowsRuntime

$asTaskGeneric = ([System.WindowsRuntimeSystemExtensions].GetMethods() | ? { $_.Name -eq 'AsTask' -and $_.GetParameters().Count -eq 1 -and $_.GetParameters()[0].ParameterType.Name -eq 'IAsyncOperation`1' })[0]
Function Await($WinRtTask, $ResultType) {
    $asTask = $asTaskGeneric.MakeGenericMethod($ResultType)
    $netTask = $asTask.Invoke($null, @($WinRtTask))
    $netTask.Wait(-1) | Out-Null
    $netTask.Result
}
Function AwaitAction($WinRtAction) {
    $asTask = ([System.WindowsRuntimeSystemExtensions].GetMethods() | ? { $_.Name -eq 'AsTask' -and $_.GetParameters().Count -eq 1 -and !$_.IsGenericMethod })[0]
    $netTask = $asTask.Invoke($null, @($WinRtAction))
    $netTask.Wait(-1) | Out-Null
}
PS C:\Users\Misty> $file = 'C:\Users\Misty\iCloudPhotos\Photos\IMG_9773.MOV'
PS C:\Users\Misty> Write-Host $file
C:\Users\Misty\iCloudPhotos\Photos\IMG_9773.MOV
PS C:\Users\Misty> Await ([Windows.Storage.StorageFile]::GetFileFromPathAsync($file)) ([Windows.Storage.StorageFile])


ContentType      : video/quicktime
FileType         : .MOV
IsAvailable      : True
Attributes       : Archive
DateCreated      : 2019/5/26 18:24:16 +08:00
Name             : IMG_9773.MOV
Path             : C:\Users\Misty\iCloudPhotos\Photos\IMG_9773.MOV
DisplayName      : IMG_9773
DisplayType      : MOV 文件
FolderRelativeId : 40E54828C9E726DE\IMG_9773.MOV
Properties       : Windows.Storage.FileProperties.StorageItemContentProperties
Provider         : Windows.Storage.StorageProvider



PS C:\Users\Misty> $t = Await ([Windows.Storage.StorageFile]::GetFileFromPathAsync($file)) ([Windows.Storage.StorageFile])
PS C:\Users\Misty> $t.Provider

DisplayName Id
----------- --
iCloud 照片 iCloudPhotos


PS C:\Users\Misty> $t.Provider

DisplayName Id
----------- --
iCloud 照片 iCloudPhotos


PS C:\Users\Misty> $t.Properties
Windows.Storage.FileProperties.StorageItemContentProperties
PS C:\Users\Misty> $t.Properties | Get-Member


   TypeName:Windows.Storage.FileProperties.StorageItemContentProperties

Name                       MemberType Definition
----                       ---------- ----------
CreateObjRef               Method     System.Runtime.Remoting.ObjRef CreateObjRef(type requestedType)
Equals                     Method     bool Equals(System.Object obj)
GetDocumentPropertiesAsync Method     Windows.Foundation.IAsyncOperation[Windows.Storage.FileProperties.DocumentProp...
GetHashCode                Method     int GetHashCode()
GetImagePropertiesAsync    Method     Windows.Foundation.IAsyncOperation[Windows.Storage.FileProperties.ImagePropert...
GetLifetimeService         Method     System.Object GetLifetimeService()
GetMusicPropertiesAsync    Method     Windows.Foundation.IAsyncOperation[Windows.Storage.FileProperties.MusicPropert...
GetType                    Method     type GetType()
GetVideoPropertiesAsync    Method     Windows.Foundation.IAsyncOperation[Windows.Storage.FileProperties.VideoPropert...
InitializeLifetimeService  Method     System.Object InitializeLifetimeService()
RetrievePropertiesAsync    Method     Windows.Foundation.IAsyncOperation[System.Collections.Generic.IDictionary[stri...
SavePropertiesAsync        Method     Windows.Foundation.IAsyncAction SavePropertiesAsync(System.Collections.Generic...
ToString                   Method     string ToString()


PS C:\Users\Misty> $t.Properties | Get-Member


   TypeName:Windows.Storage.FileProperties.StorageItemContentProperties

Name                       MemberType Definition
----                       ---------- ----------
CreateObjRef               Method     System.Runtime.Remoting.ObjRef CreateObjRef(type requestedType)
Equals                     Method     bool Equals(System.Object obj)
GetDocumentPropertiesAsync Method     Windows.Foundation.IAsyncOperation[Windows.Storage.FileProperties.DocumentProperties] GetDocumentPropertiesAsync()
GetHashCode                Method     int GetHashCode()
GetImagePropertiesAsync    Method     Windows.Foundation.IAsyncOperation[Windows.Storage.FileProperties.ImageProperties] GetImagePropertiesAsync()
GetLifetimeService         Method     System.Object GetLifetimeService()
GetMusicPropertiesAsync    Method     Windows.Foundation.IAsyncOperation[Windows.Storage.FileProperties.MusicProperties] GetMusicPropertiesAsync()
GetType                    Method     type GetType()
GetVideoPropertiesAsync    Method     Windows.Foundation.IAsyncOperation[Windows.Storage.FileProperties.VideoProperties] GetVideoPropertiesAsync()
InitializeLifetimeService  Method     System.Object InitializeLifetimeService()
RetrievePropertiesAsync    Method     Windows.Foundation.IAsyncOperation[System.Collections.Generic.IDictionary[string,System.Object]] RetrievePropertiesAsync(System.Collections.Generic.IEnumerable[string] propertiesToRetrieve), Windows.Foundation.IAsyncOperation[Sys...
SavePropertiesAsync        Method     Windows.Foundation.IAsyncAction SavePropertiesAsync(System.Collections.Generic.IEnumerable[System.Collections.Generic.KeyValuePair[string,System.Object]] propertiesToSave), Windows.Foundation.IAsyncAction SavePropertiesAsync(), W...
ToString                   Method     string ToString()


PS C:\Users\Misty> $t.Properties.GetDocumentPropertiesAsync()
System.__ComObject
PS C:\Users\Misty> $p = Await $t.Properties.GetDocumentPropertiesAsync() ([Windows.Storage.FileProperties.DocumentProperties])
PS C:\Users\Misty> $p

Title Comment Author             Keywords
----- ------- ------             --------
              System.__ComObject System.__ComObject

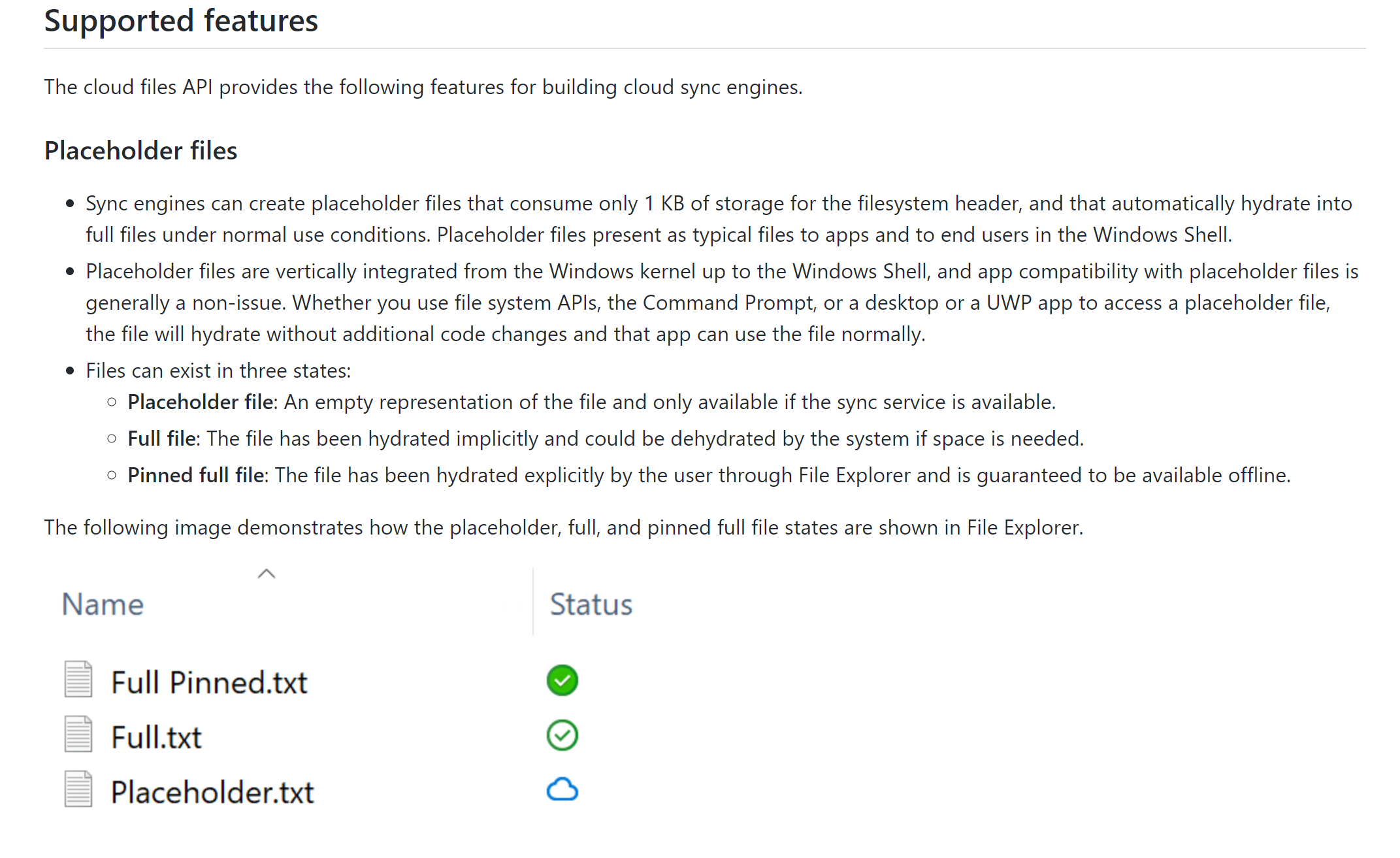

搜索后发现文件状态在微软文档中成为pinned
notion image

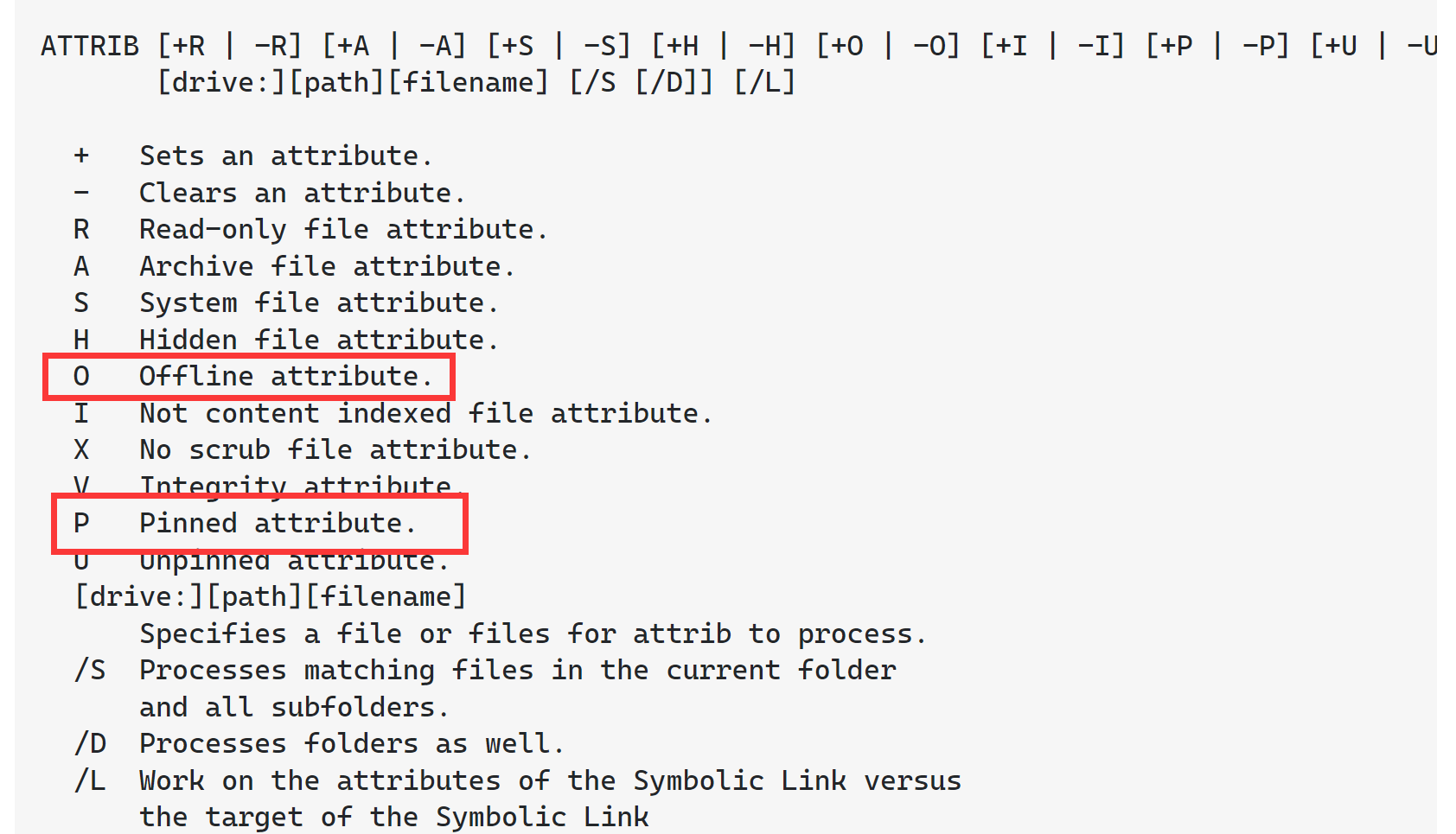

由此发现attrib可以直接控制是否为pinned
notion image
设置了个计划任务每10min设置:
attrib /S +P C:\Users\Misty\iCloudPhotos\Photos\*

Bug4: Passwords无法使用

  • 卸载所有Apple的东西（iTunes、Application Support、Bonjour等）
  • 删除ProgramData下面的Apple、Apple Inc、Apple Computer
  • 删除：
    • C:\Users\Misty\AppData\Roaming\Microsoft\Crypto\Keys\e84a0XXXX
    • C:\Users\Misty\AppData\Roaming\Microsoft\Crypto\RSA\S-1-5-21-1071035101-1108086695-2934149521-1001\43e3a4XXX
  • 删除C:\Users\Misty\AppData\Roaming\Microsoft\SystemCertificates\My\Certificates下带有unicode字符串:APNS 的文件
  • 删除registry
Windows Registry Editor Version 5.00

; 由 Total Uninstall 产生


[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\CLSID\{90E52E21-F4FC-4AFA-9686-474F701E8388}]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\ClassIndex\{19BB4B1F-6BEE-47C2-858E-64140AE114EE}]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\ClassIndex\{23AD9193-EBAD-42BF-8D03-FEC6331270F2}]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\ClassIndex\{6812639B-FD61-4329-9901-22CFDBD690FE}]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\ClassIndex\{85527100-19D0-45AF-9F09-DAB4E711C35E}]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\ClassIndex\{9E6E74C7-0E85-4D14-8851-7635E2C1C528}]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\ClassIndex\{D3B0ACEA-46E8-41A7-A69E-0A46053EA2A1}]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\ClassIndex\{E8784411-23CA-4783-AA3D-060EAB307FE5}]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\ClassIndex\{F73FD223-6B08-4C7F-BF36-27ABAA8E70CC}]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\ClassIndex\{FDD068C2-D51A-4175-8A20-5CBC704EA3BD}]

; [-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\InterfaceIndex]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\Package\AppleInc.iCloud_13.4.92.0_x86__nzyj5cx40ttqa]

; [-HKEY_LOCAL_MACHINE\SOFTWARE\Classes\PackagedCom\TypeLibIndex]

; [-HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\AppModel\Lookaside]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Appx\PackageState\S-1-5-21-1071035101-1108086695-2934149521-1001\AppleInc.iCloud_nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Classes\.key]

[-HKEY_CURRENT_USER\Software\Classes\.key-tef]

[-HKEY_CURRENT_USER\Software\Classes\.numbers]

[-HKEY_CURRENT_USER\Software\Classes\.numbers-tef]

[-HKEY_CURRENT_USER\Software\Classes\.pages]

[-HKEY_CURRENT_USER\Software\Classes\.pages-tef]

[-HKEY_CURRENT_USER\Software\Classes\apple-icloudapp]

[-HKEY_CURRENT_USER\Software\Classes\AppX2146dfv6wn2ebhzfrmfjgqkwjmjz7cf9]

[-HKEY_CURRENT_USER\Software\Classes\AppXmbyj2feynwef7cer3gmy2tm15jc6h6e1]

[-HKEY_CURRENT_USER\Software\Classes\AppXtr9mtd2csje416yr51xqnv4ygkzc58qk]

[-HKEY_CURRENT_USER\Software\Classes\AppXwg6g3r9wmat4r6rycdae614xh3ce88m2]

[-HKEY_CURRENT_USER\Software\Classes\Extensions\ContractId\windows.appExecutionAlias\PackageId\AppleInc.iCloud_13.4.92.0_x86__nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Classes\Extensions\ContractId\Windows.AppService\PackageId\AppleInc.iCloud_13.4.92.0_x86__nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Classes\Extensions\ContractId\Windows.BackgroundTasks\PackageId\AppleInc.iCloud_13.4.92.0_x86__nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Classes\Extensions\ContractId\Windows.CommandLineLaunch\PackageId\AppleInc.iCloud_13.4.92.0_x86__nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Classes\Extensions\ContractId\Windows.Launch\PackageId\AppleInc.iCloud_13.4.92.0_x86__nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Classes\Local Settings\Software\Microsoft\Windows\CurrentVersion\AppModel\PolicyCache\AppleInc.iCloud_nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Classes\Local Settings\Software\Microsoft\Windows\CurrentVersion\AppModel\Repository\Packages\AppleInc.iCloud_13.4.92.0_x86__nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Classes\Local Settings\Software\Microsoft\Windows\CurrentVersion\AppModel\SystemAppData\AppleInc.iCloud_nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Classes\PackagedCom\Package\AppleInc.iCloud_13.4.92.0_x86__nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\App Paths\iCloudChrome.exe]

[-HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\App Paths\iCloudFirefox.exe]

[-HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\App Paths\iCloudPasswordsExtensionHelper.exe]

[-HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\AppHost\IndexedDB\AppleInc.iCloud_nzyj5cx40ttqa]

[-HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Authentication\LogonUI\Notifications\BackgroundCapability\S-1-15-2-577278596-3063659431-1612091346-1109771266-600305798-4280066548-3535389673]

[-HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\BackgroundAccessApplications\AppleInc.iCloud_nzyj5cx40ttqa]
[HKEY_CURRENT_USER\Software\RegisteredApplications]
"AppXbfs6jhdzeh4ptyjea1g3jp0hkb7hfbj4"=-
"AppXnmt89mjds80hbafzsckbdsv8kptrp3v2"=-
